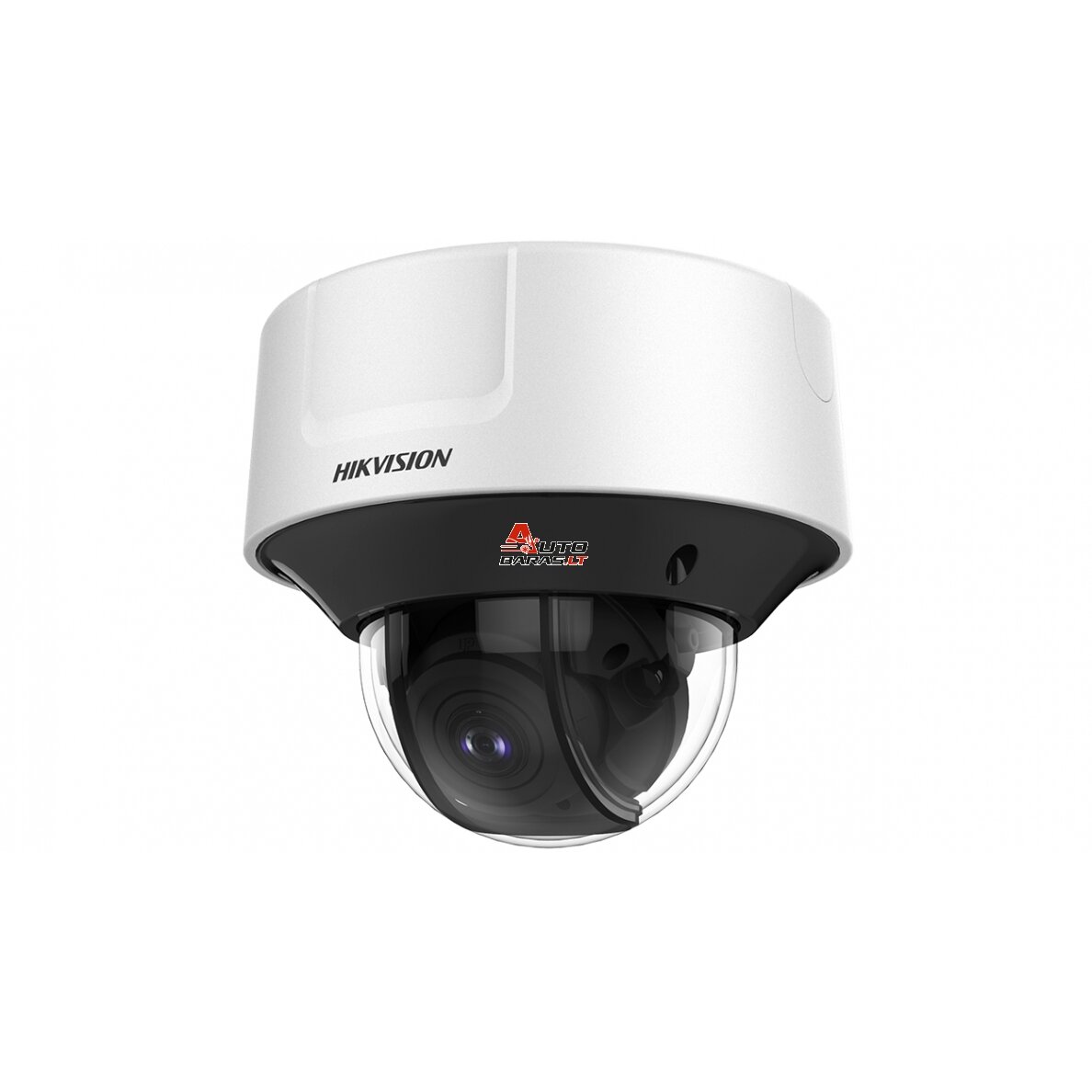

Hikvision dome DS-2CD5546G0-IZHS F2.8-12

  • Hikvision dome DS-2CD5546G0-IZHS F2.8-12

    Prekės kodas: KIPDS2CD5546G0-IZHS
    Kaina 1168.67
    Likutis: 0 vnt.



    Prekės NETURIME arba ji yra UŽSAKOMA

    Sužinokite parašę mums užklausą dėl sąlygų ir termino, galbūt galime užsakyti.

    Jeigu prekė TIK užsakinėjama, tai sąlygos yra aprašytos žemiau prie prekės aprašymo

    Į krepšelį
    • 4MP kamera
    • Motorinis objektyvas
    • Darkfighter technologija
    • H.265+ suspaudimo technologija
    • 6 elgesio analizės, 3 išimčių aptikimas ir veido aptikimas



    • IR apšvietimas iki 50m
    • Vieta SD kortelei iki 256GB
    • IP67, IK10
    Gamintojas
  • Prekių pristatymas/atsiėmimas

    • * Įprastai turimos prekės sandėlyje pristatomos nuo pasirinkto pristatymo būdo per ~1-2d.d.
    • * Užsakomos prekės ~2-4d.d.
    • * Dauguma prekių iš sandėlių Kaune galima atsiimti per ~10-30min I-V 8:00 - 18:00
    • * Į atsiėmimo punktus Kaune (Ringaudai arba Romainiai) prekės atvežiamos per ~1d.d I-VII 8:00 - 22:00
    •  (Populiariausias prekes turime atsiėmimo punktuose - teiraukitės telefonu/email/sms/viber/whatsapp/skype)
    •  Tel. +37062583994 Skambučiai / SMS / Viber / WhatsApp | E-mail: info@AutoBaras.LT
    •  Plačiau: KONTAKTAI
  •

    • Kamera
    • Sensorius1/1.8″ Progressive Scan CMOS
    • Min. apšvietimasColor: 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
    • Užrakto greitis1 s to 1/100,000 s
    • Lėtas užraktasYes
    • WDR140 dB
    • Day & NightIR Cut Filter
    • Kampo keitimasPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
    • Lęšis
    • FokusavimasAuto, semi-auto, manual
    • Lęšio tipasMotorized lens, 2.8 to 12 mm and 8 to 32 mm optional
    • FOV

      2.8 to 12 mm, horizontal FOV 109.2° to 38.9°, vertical FOV 56.2° to 21.9°, diagonal FOV 134.5° to 45°

      8 to 32 mm, horizontal FOV 37.7° to 15.2°, vertical FOV 21° to 8.6°, diagonal FOV 43.3° to 17.24°

    • Diafragama

      F1.2 to 2.5

      8 to 32 mm: F1.8, Constant F1.8 throughout the zoom range

    • Lęšio montavimasIntegrated
    • Aperture TypeP-iris
    • Apšvietimas
    • IR distancija2.8 to 12 mm: up to 30 m; 8 to 32 mm: up to 50 m
    • Bangos ilgis850 nm
    • Vaizdas
    • Maks. rezoliucija2560 × 1440
    • Pagrindinis srautas50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
    • Antrinis srautas50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
    • Trečias srautas50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
    • Ketvirtas srautas50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
    • Penktasis srautas50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
    • Custom Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
    • Vaizdo suspaudimasMain stream: H.265/H.264/H.265+/H.264+,Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
    • Vaizdo bitų greitis32 Kbps to 16 Mbps
    • H.264 tipasBaseline Profile/Main Profile/High Profile
    • H.265 tipasMain Profile
    • H.264+Main stream support
    • H.265+Main stream support
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Region of Interest (ROI)Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions for each stream, and dynamic face tracking
    • Garsas
    • Pašalinių garsų šalinimasYes
    • Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    • Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3
    • Garso bitų greitis64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/ 8-320Kbps(MP3)
    • Internetas
    • Tiesioginis vaizdo žiūrėjimasUp to 20 channels
    • APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
    • ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
    • Sklandus srautasYes
    • User/HostUp to 32 users, 3 levels: administrator, operator and user
    • SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1
    • Vidinė atmintis

      microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

    • KlientasiVMS-4200, Hik-Connect, iVMS-5200, Hik-Central
    • NaršyklėPlug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox30.0-51, Safari8.0+,Plug-in free live view: Chrome 45+, Mozilla Firefox52+
    • Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
    • Nuotrauka
    • Diena/Naktis režimasDay/Night/Auto/Schedule/Triggered by Alarm In
    • Tikslinis apkarpymasYes
    • Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
    • Nuotraukų pagražinimasBLC, HLC, 3D DNR, Defog, EIS, distortion correction
    • Nuotraukos nustatymaiRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
    • SNR≥52dB
    • Sąsaja
    • Garsas1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono
    • Signalizacija1-ch input, 1-ch output (up to 24 VDC 1A or 110 VAC 500 mA)
    • Vaizdo išvestis1Vp-p composite output (75 Ω/CVBS)
    • Saugyklos vietaBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
    • Įrenginio nustatymas iš naujoYes
    • Bendravimo sąsaja1 RJ45 10M/100M/1000M Ethernet port,1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    • Galia12 VDC, max. 200 mA
    • Interface StyleConnector panel
    • ŠildytuvasHeater-H: yes
    • Funkcijos
    • Pagrindinės funckcijosMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
    • Išmaniosios funkcijos

      Line crossing detection, up to 4 lines configurable

      Intrusion detection, up to 4 regions configurable

      Region entrance detection, up to 4 regions configurable

      Region exiting detection, up to 4 regions configurable

      Unattended baggage detection, up to 4 regions configurable

      Object removal detection, up to 4 regions configurable

      Face detection: detects faces and upload images

      Scene change detection, audio exception detection, defocus detection

    • CountingCounting
    • Pagrindinis
    • Susiejimo metodas

      Trigger recording:memory card, network storage, pre-record and post-record

      Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email

      Trigger notification: HTTP, ISAPI, alarm output, Email

    • Operacinės sistemos versija5.6.0
    • Tinklo naršyklės kalba

      32 languages

      English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

    • Pagrindinės funkcijosAnti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening
    • Embedded Open PlatformYes. The camera supports installation and running up to 4 extra applications.
    • Sandėliavimo sąlygos-30 °C to 65 °C (-22 °F to 149 °F), humidity 95% or less (non-condensing)
    • Darbo sąlygos

      -IZS: -30 °C to 65 °C (-22 °F to 149 °F), humidity 95% or less (non-condensing)

      -IZHS: -40 °C to 65 °C (-40 °F to 149 °F), humidity 95% or less (non-condensing)

    • Maitinimas12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3at, class 4)
    • Energijos sunaudojimas ir stipris

      -IZS:

      With extra load: 12 VDC, 1.27 A, max. 15.2 W; PoE (802.3at, 42.5 V to 57 V), 0.36 A to 0.27 A, class 4

      Without extra load: 12 VDC, 1.05 A, max. 12.6 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.23 A, class 4

      -IZHS:

      With extra load: 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4

      Without extra load: 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4

      with extra load\" means that an extra device is connected to and powered by the camera."

    • Kameros dydis

      Camera: Φ162 × 140.3 mm (Φ6.4″ × 5.5″)

      With package: 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″)

    • Kameros svoris

      Camera: 1450 g (3.2 lb.)

      With package: 1950 g (4.3 lb.)

    • Patvirtinimai
    • EMC

      IC: IC-VoC(ICES-003 Issue 7:2020),

      FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B),

      KC: KN 301489-1,KN 301489-17,RRA NOTICE 2017-14(2017.12.05),RRA NOTICE 2017-19(2017.12.28),

      CE: CE-EMC(EN 50130-4:2011+A1:2014,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013),

      RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015

    • Saugumas

      CB: IEC 60950-1,

      UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014

    • Aplinkosauga

      CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)

      REACH SVHC: Regulation (EC) No 1907/2006

    • ApsaugaIngress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
